FTTA Products
Fibre To The Antenna -CPRI

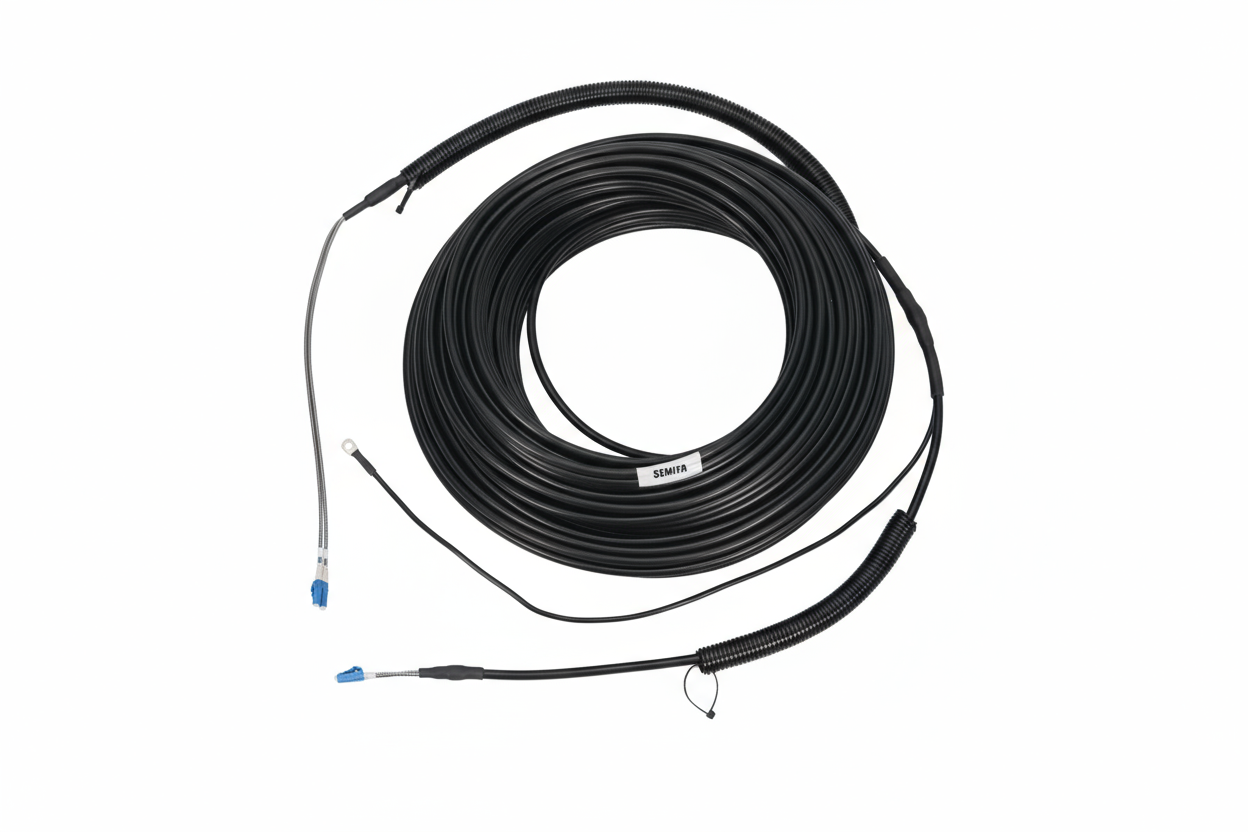

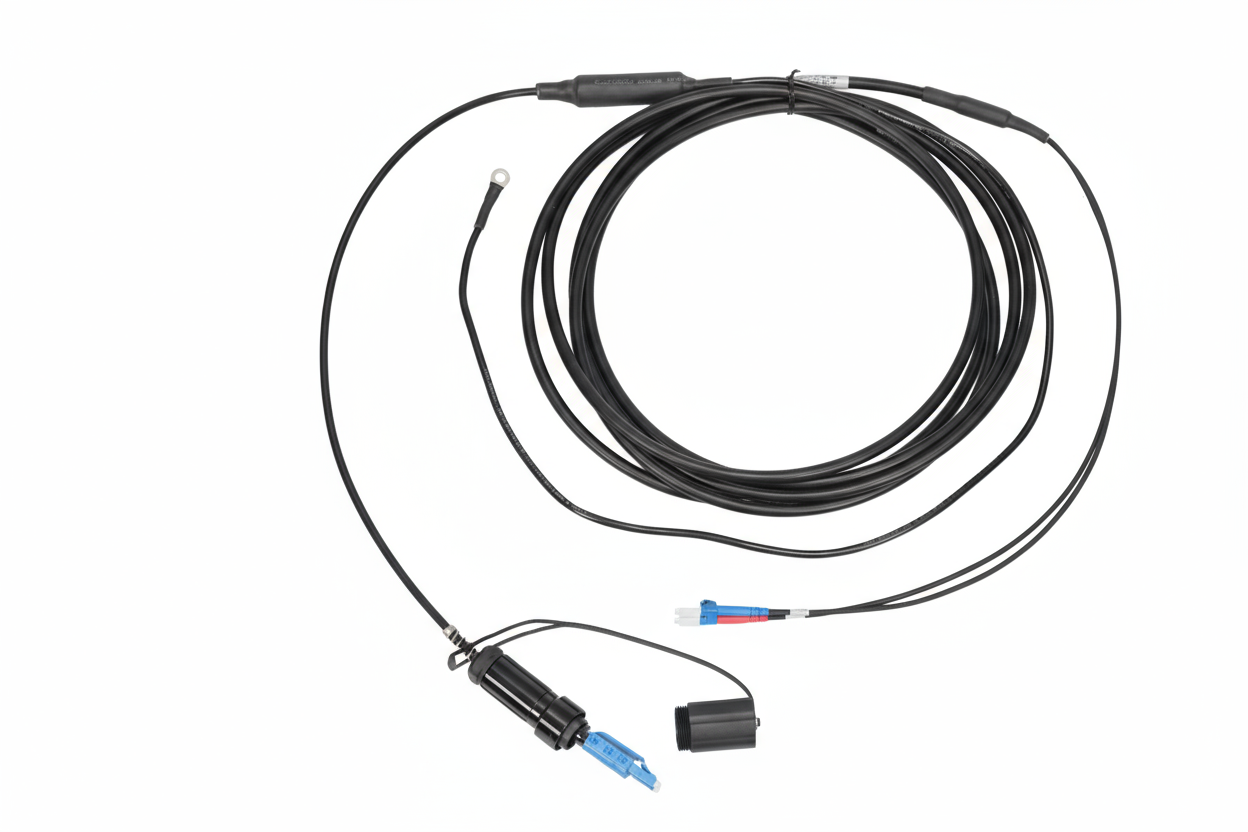

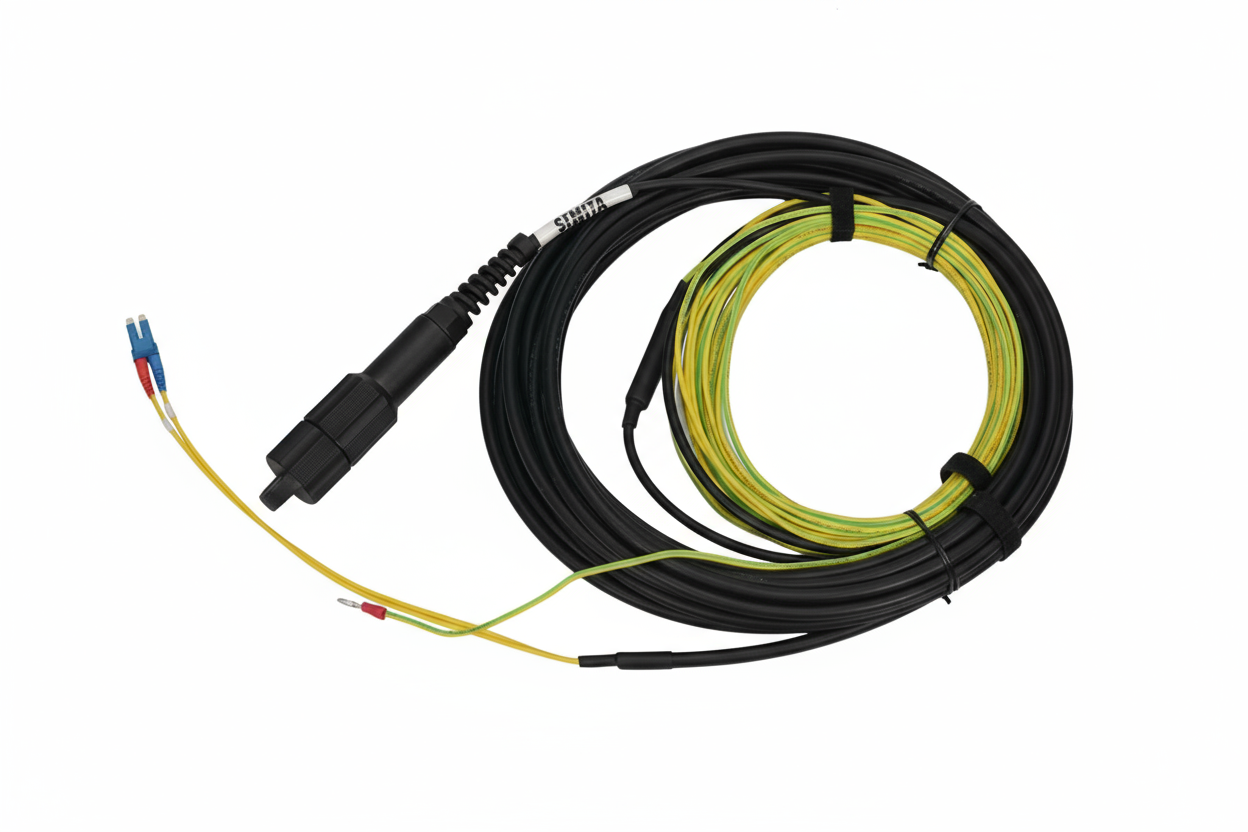

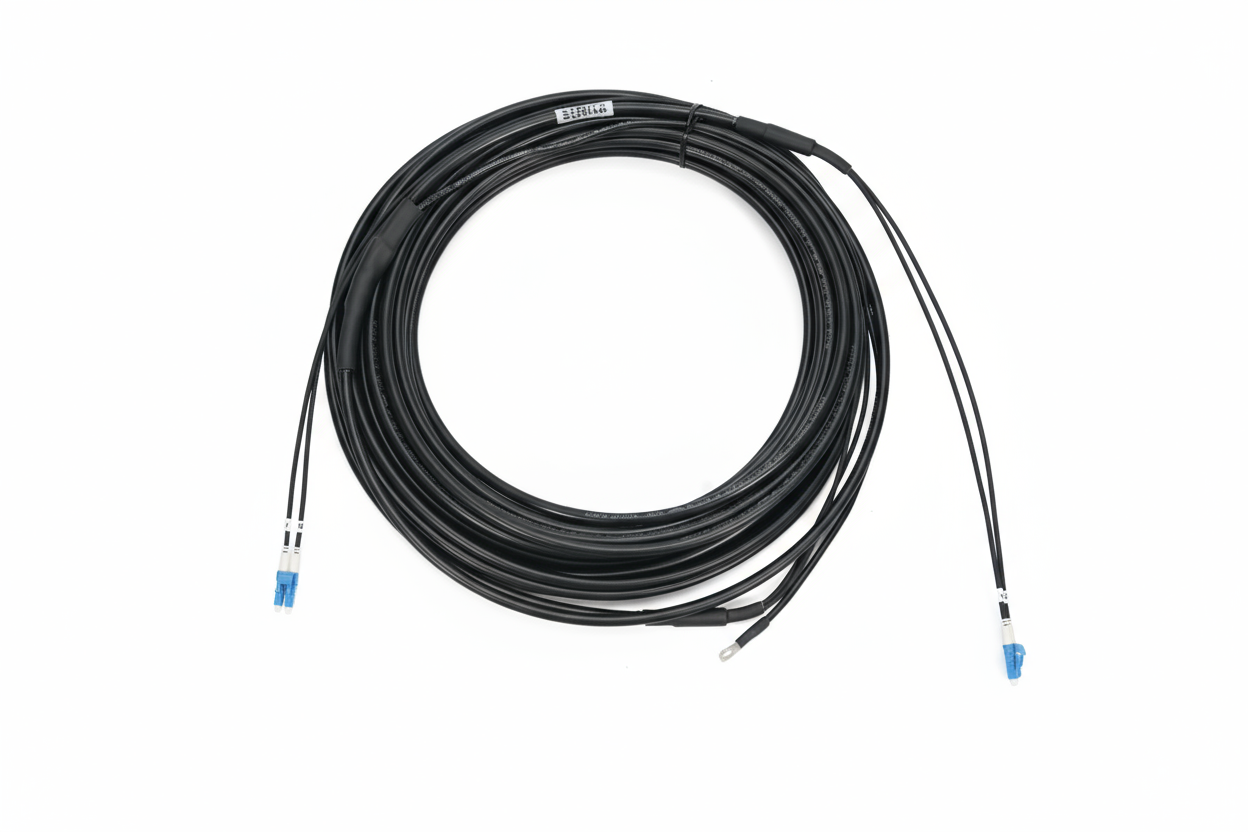

Common Public Radio Interface (CPRI) Cable
Product Features
- Available in Multimode and Single mode versions.
- Any connector options like FC, SC. LC, ST & Hybrid.
- Uses high quality ferrules and connectors.
- Factory terminated and 100% tested for Insertion.
- Loss and Return Loss.
- Individual test sheet and unique product identification number for traceability.
- Manufacturing process qualified to meet end face geometry requirements.
- Good repeatability; Mutual thrust performance.
- Available in IP65, IP66, IP67, IP68.
Applications
- Data centre & Datacom applications
- Telecommunications and FTTx
- CATV
- Fiber optic test equipment & sensors.
- Passive optical networks & fiber communication systems.
Technical Specification
| Type | Specification | |
|---|---|---|
|
Specification |
Multi-Mode – 62.5/125 (OM1), 50/125 (OM2), OM3, OM4 |
Single mode – OS1/OS2 9/125µm, (G657a & b), G652D, G657 B3 |
|
Connector Types |
SC, LC, FC, ST,E-2000, Mini LC – Simplex & Duplex |
|
|
End face finish |
PC, UPC, APC |
|
Optical Performance
| Type | Specification | Value | |
|---|---|---|---|
|
Insertion Loss (Multimode) |
SC, LC, FC, ST,E-2000, Mini LC |
≤ 0.3 dB |
|
|
Insertion Loss (Single mode) |
SC, LC, FC, ST,E-2000, Mini LC |
≤ 0.3 dB |
|
|
Return Loss (Multi mode) |
SC, LC, FC, ST,E-2000, Mini LC |
≥ 35 dB for UPC ≥ 60 dB for APC |
|
|
Return Loss (Single mode) |
SC, LC, FC, ST,E-2000, Mini LC |
≥ 50 dB for UPC ≥ 60 dB for APC |
|
