Optical Cables
Riser Cable - AISG Cable Assemblies
Product Features

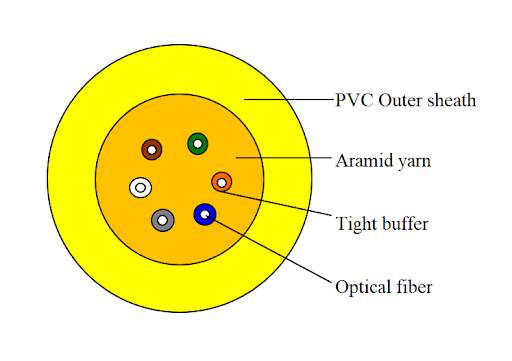

- Tight buffered fiber without jelly compound
- Aramid yarn strength members, PVC outer sheath available.
- Usually, SM: yellow; MM: orange outer sheath, 8/12/24/48 fiber variants available.
Applications
- Suitable for aerial, pipeline, bracket laying.
- Aramid strength members reduce weight for longer span lengths.
- Construction is ideal for use near electrical power lines.
Mechanical & Environmental characteristics
| PartNumber | Fiber Count | Outside Diameter (mm) | T.B Diameter (mm) | Cable Weight (kg/km) | Tensile (S/L) -N | Crush Load (S/L) -N | Bend Radius (S/L) -(mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
04DTB09R-YE |
4 |
4.5 |
0.9 |
18.0 |
1500 |
600 |
1000 |
300 |
20 D |
10 D |
|
06DTB09R-YE |
6 |
5.0 |
0.9 |
22.0 |
||||||
Fiber Characteristics
| Characteristics | Specification | |
|---|---|---|
|
Fiber Characteristics |
1310nm |
1550nm |
|
Data |
≤0.35dB/km |
≤0.22dB/km |
Note:
* The color identification of the buffer layer complies with the standard color identification set in GB13993.3-2001 Standard
* S: short term; L: long term; T.B: tight buffer
* Crush load: N/100mm; D: cable diameter
Tight Buffer Colour Code
- BL- Blue
- OR- Orange
- GR- Green
- BR- Brown
- GY- Grey
- WH- White
- RE- Red
- BK- Black
- YE- Yellow
- PU- Purple
- PI- Pink
- AQ- Aqua
