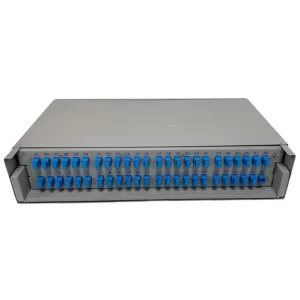

Rack Fiber Management System 24F/48F/96F/144F
- The body is made with cold rolled steel sheet
- Provision of 1-2 cable entrance and fiber exit of 24/48/96 cores assures flexibility.
- Cable entrances are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
- Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
- The body is made with cold rolled steel sheet
- Provision of 1-2 cable entrance and fiber exit of 24/48/96 cores assures flexibility.
- Cable entrances are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
- Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
Technical Parameters
|
Type
|
Measurements
|
|---|---|
|
External Size -
(length× width× height)
|
24F :430x250x1U
48F: 430x250x2U 96F: 430x250x3U |
|
Weight
|
3.5Kg
|
|
Optical fiber winding radius
|
≥40mm
|
|
Extra loss of fiber tray
|
NA
|
|
Fiber length left in tray
|
1.5m
|
|
Fiber capacity
|
48 cores
|
|
48 cores
|
- 400C ~ + 600C
|
|
Lateral pressure-resistance
|
500N
|
|
Shock-resistance
|
750N
|
Installation Instructions
- Peel the cable, take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1～1.6m fiber and 20～40mm steel core.
- Peel the cable, take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1～1.6m fiber and 20～40mm steel core.
- Lead the fiber into the melting and connecting tray, fix heat contract tube and melted tube to one of the connecting fiber. After melting and connecting the fiber,
- Move heat contract tube and melted tube and fix the stainless (or quartz) reinforce core stick, make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray(one tray can lay 12 cores)
- Lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
- Position it and use the earth wire in accordance with the project plan.
