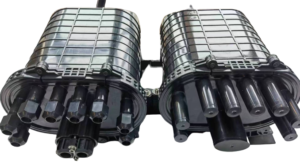

JC 96F Flat
- Installation of aerial, buried, wall mounting and hanging in manhole
- Plastic parts are made of high-quality engineering plastics and metal parts are made of high-quality anti-rust materials
- Fast operation on sealing and easily operation on optical cable Inlet & Outlet

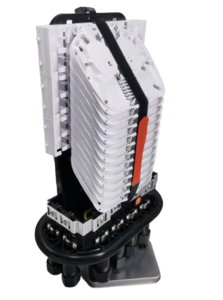

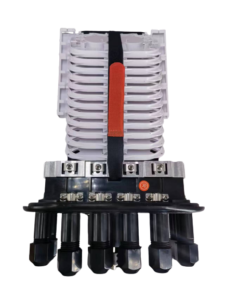

- The splicing tray can be reversed, maintained and expanded easily.
- Grounding device and valve nozzle can be installed
- Protection Level: IP68
- SM-JC1096A joint closure is suitable for the connection of optical cables in PON optical communication network when the cables are divergent.
- In the FTTX distribution network, SM-JC1096A mainly solves the problems of A/B end access, small capacity simplex optical fiber fusion, wiring, splitting, and multiple access optical cables leading to fixed.
Environmental Characteristics
|
Type
|
Measurements
|
|---|---|
|
Operation temperature
|
25℃～＋65℃；
|
|
Storage temperature
|
－25℃～＋65℃
|
|
Relative humidity
|
≤85%（＋30℃）
|
|
Atmospheric pressure
|
70～106kPa
|
Parameter Specifications
|
Main Electrical Technical Parameters
|
|---|
|
High voltage protective grounding device
|
|
Insulation resistance: > 2 *104M/500V (DC)
|
|
Withstand voltage: > 15000V (DC)/1min, no breakdown, no arc.
|
|

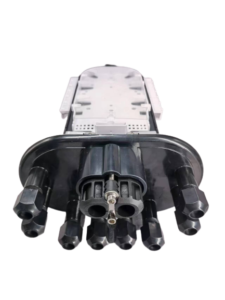

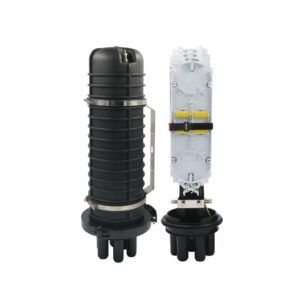

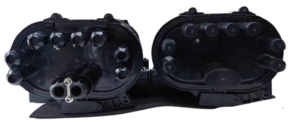

SM-JC1096A cap type cable connector box has an elliptical inlet and outlet tube and eight circular inlet and outlet tubes
|
