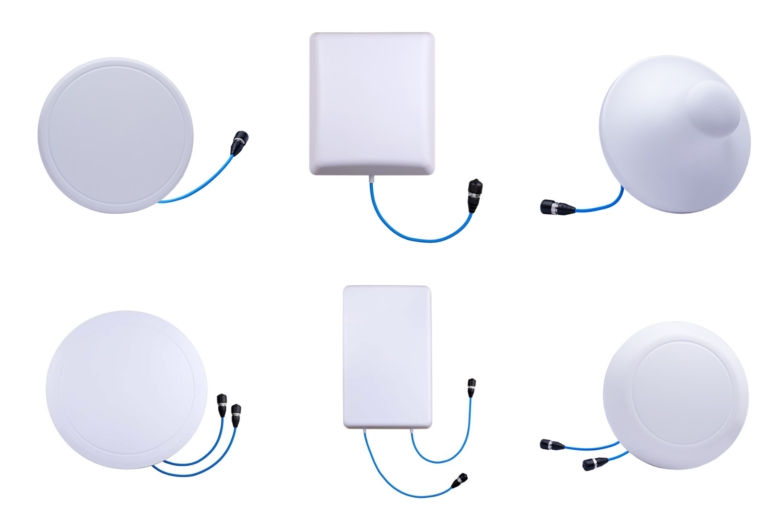

IBS DAS Antennas
Product Features
- Improves signal strength and coverage in large, complex environments.
- Offers strong signal clarity with minimal interference for reliable connections.
- Flexible installation options for optimal coverage in various locations.
- Compatible with diverse wireless technologies and frequency ranges.
- Built to withstand environmental factors for long-term, dependable performance.
Specifications
| Parameters | Omni Antenna | Panel Antenna |
|---|---|---|
|
Frequency Range |
698-4000 MHz |
698-4000 MHz |
|
Impedance |
50 Ohms |
50 Ohms |
|
Horizontal Beamwidth |
360 deg |
55 deg |
|
Vertical Beamwidth |
65 deg |
35 deg |
|
Gain |
2/5 dBi |
5/8 dBi |
|
Polarisation |
Horizontal |
Vertical |
|
VSWR |
< 2.0 |
< 2.0 |
|
Termination – Port |
N Female |
N Female |
|
Max Power Handling |
50W |
50W |
|
Passive Intermodulation (IM3) |
< -150dBc@(2x20W) |
< -150dBc@(2x20W) |
|
Dimension(WXDXH)mm* |
Ø190×7.3 mm |
180×158×60 mm |
|
Temperature Range |
-40°C to +65°C |
-40°C to +65°C |
|
Pigtail Length* |
0.2 Mtrs |
0.2 Mtrs |
|
Radiator Material |
PCB/Aluminum |
PCB/Aluminum |
|
Radom Material |
ABS |
ABS |
|
Antenna Color |
White / Ivory |
White / Ivory |
|
Mounting |
Ceiling Mountable |
Wall/Pole Mountable |
Accessories
- Pole Mount accessories x 1set Pigtails x 2 Cable ties x 8 Insulation Tape x 1 Wall mounting accessories Fiber protection tube x 0.5m Heat Shrink tube x 8
- Pigtails x 2
- Cable ties x 8
- Insulation Tape x 1
- Wall mounting accessories
- Fiber protection tube x 0.5m
- Heat Shrink tube x 8
