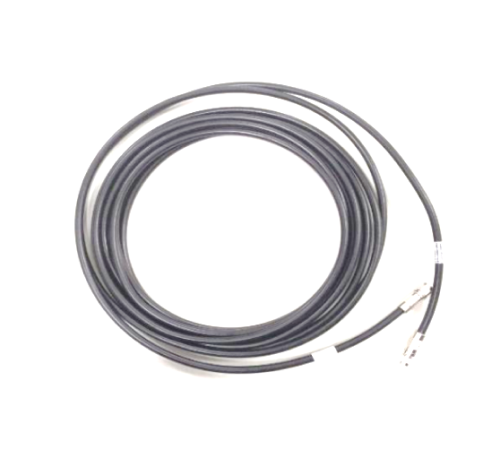

LMR 400 Jumper Cable
Product Features
- Designed for low signal loss and high-frequency performance with minimal attenuation.
- Features robust shielding and a heavy-duty outer jacket for protection against interference and physical damage.
- Available in various lengths to suit different installation needs.
Product Features
- Connects antennas to radios or transceivers in communication systems.
- Links broadcasting equipment, such as transmitters and receivers, for reliable signal transmission.
- Used in wireless networking setups to connect antennas to network devices.
Cable Attenuation
| Frequency | dB/100ft | dB/100m | Avg. Power Rating (Kw) |
|---|---|---|---|
|
30 MHz |
0.67 |
2.20 |
3.33 |
|
50 MHz |
0.88 |
2.90 |
2.57 |
|
150 MHz |
1.52 |
5.00 |
1.47 |
|
220 MHz |
1.86 |
6.10 |
1.20 |
|
450 MHz |
2.71 |
0.83 |
0.83 |
|
900 MHz |
3.90 |
12.80 |
0.58 |
|
1500 MHz |
5.12 |
16.80 |
0.44 |
|
1800 MHz |
5.67 |
18.60 |
0.40 |
|
2000 MHz |
5.97 |
19.60 |
0.37 |
|
2500 MHz |
6.77 |
22.20 |
0.33 |
|
5800 MHz |
10.82 |
35.50 |
0.21 |
Technical Details
| Characteristics | Specification |
|---|---|
|
Connector 1 |
TNC-Male |
|
Connector 2 |
N-Male |
|
Cable Type |
LMR400 |
Environmental Details
| Characteristics | Specification |
|---|---|
|
Temperature range |
-45 °C to +85 °C |
|
Degree of protection (mated pair) |
IEC 60529, IP68 （20℃,1m,24H） |
|
RoHS compliant |
RoHS compliant |
Technical Details
| Characteristics | Specification |
|---|---|
|
Impedance |
50 Ω |
|
Operating frequency |
DC to 2.5GHz |
|
Insulation Resistance |
≥5000MΩ |
|
Withstand Voltage |
1000V rms |
|
VSWR |
≤1.3 @ 2.5GHz |
