FTTH Products

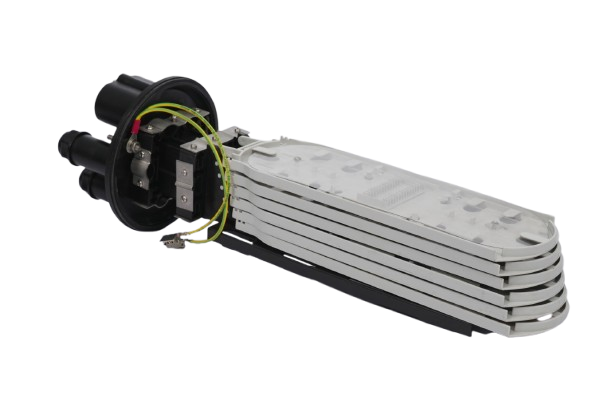

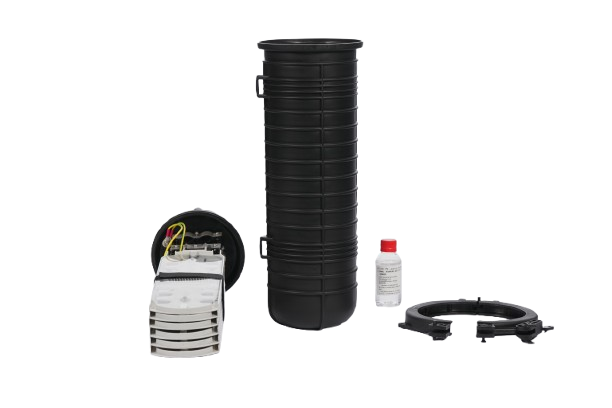

Dome Splice Closure
24F Fiber Distribution Box
Product Features
- High impact PP plastic+UV resistance agent.
- 96 cores, Maximum 4 trays, each tray for 24F splicing
- 6pcs Ø18mm ports (2pcs Ø12mm extra spare parts)
- Mechanical sealing
- IP68
Applications
- Wall, pole or strand mount
- Manhole, buried and aerial joints
- All ultra-high speed networks
- All ultra-high speed networks
- Ideal for emergency repairs of damaged fibre optic cables
Environmental Characteristics
| Type | Measurements |
|---|---|
|
IP Rating |
IP 68 or higher |
|
Temperature Range |
-40°C to +65°C |
|
Storage Temperature Range |
-40°C to +70°C |
|
Relative humidity |
0% to 95% RH |
|
Atmospheric Pressure |
70 kPa to 106 kPa |
Environmental Characteristics
|
Mounting |
Wall, pole, aerial strand, or manhole |
|
Impact Resistance |
≥20 Nm (per IEC 61300-2-10 or similar) |
|
Crush Resistance |
≥1000 N for 1 min (typical standard) |
|
Tensile Strength |
≥1000 N for main cable retention |
