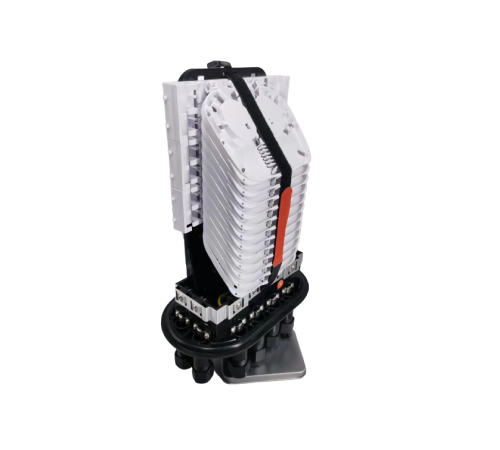

JC 96F Flat
Product Features
- Installation of aerial, buried, wall mounting and hanging in manhole.
- Plastic parts are made of high-quality engineering plastics and metal parts are made of high-quality anti-rust materials.
- Fast operation on sealing and easily operation on optical cable Inlet & Outlet.
- The splicing tray can be reversed, maintained and expanded easily.
- Grounding device and valve nozzle can be installed
- Protection Level: IP68
Applications
- SM-JC1096A joint closure is suitable for the connection of optical cables in PON optical communication network when the cables are divergent.
- In the FTTX distribution network, SM-JC1096A mainly solves the problems of A/B end access, small capacity simplex optical fiber fusion, wiring, splitting, and multiple access optical cables leading to fixed.
Environmental Characteristics
| Type | Measurements |
|---|---|
|
Operation temperature |
25℃～＋65℃； |
|
Storage temperature |
－25℃～＋65℃ |
|
Relative humidity |
≤85%（＋30℃） |
|
Atmospheric pressure |
70～106kPa |
Parameter Specifications
Main Electrical Technical Parameters
- High voltage protective grounding device
- Insulation resistance: > 2 *104M/500V (DC)
- Withstand voltage: > 15000V (DC)/1min, no breakdown, no arc.
Other Technical Parameters
- SM-JC1096A cap type cable connector box has an elliptical inlet and outlet tube and eight circular inlet and outlet tubes.
