FTTH Products
FAT 16F

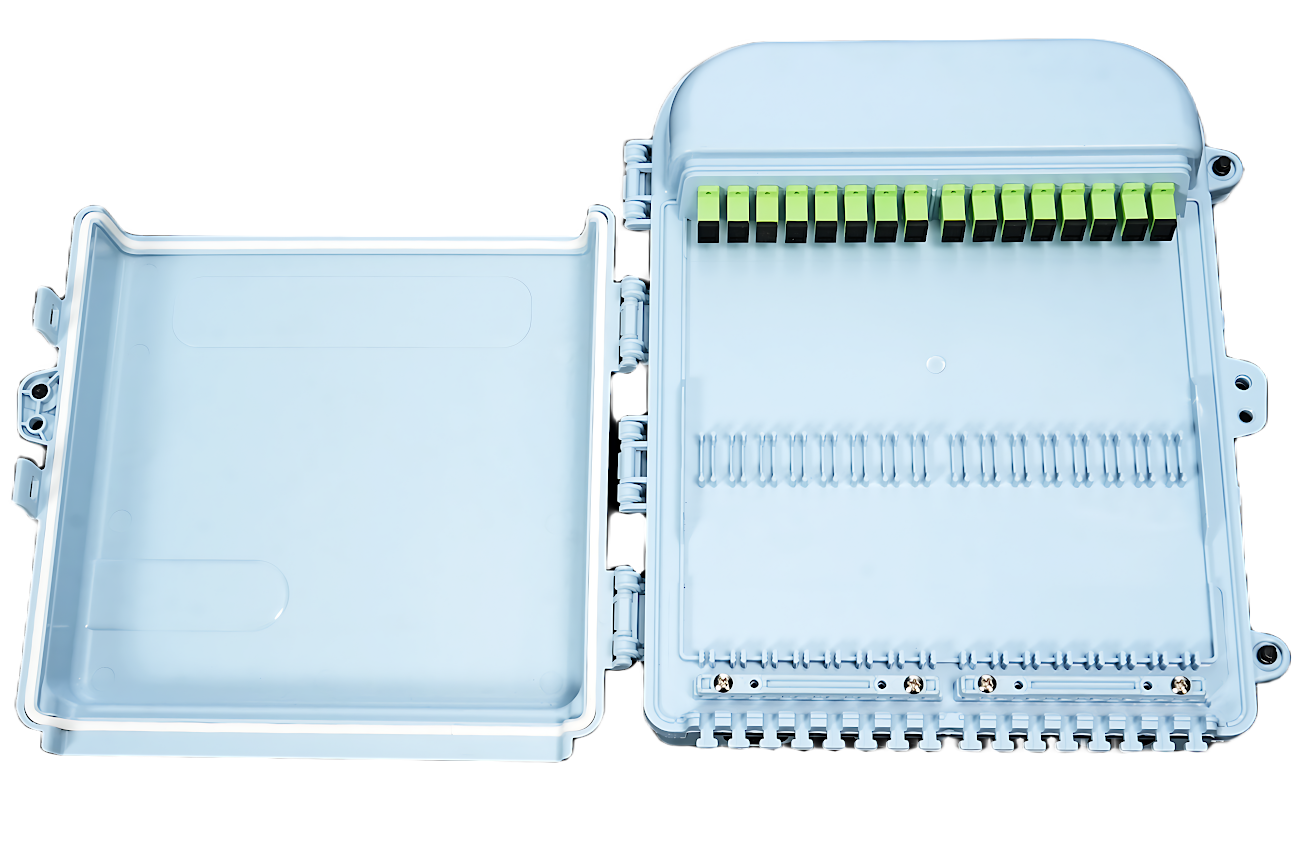

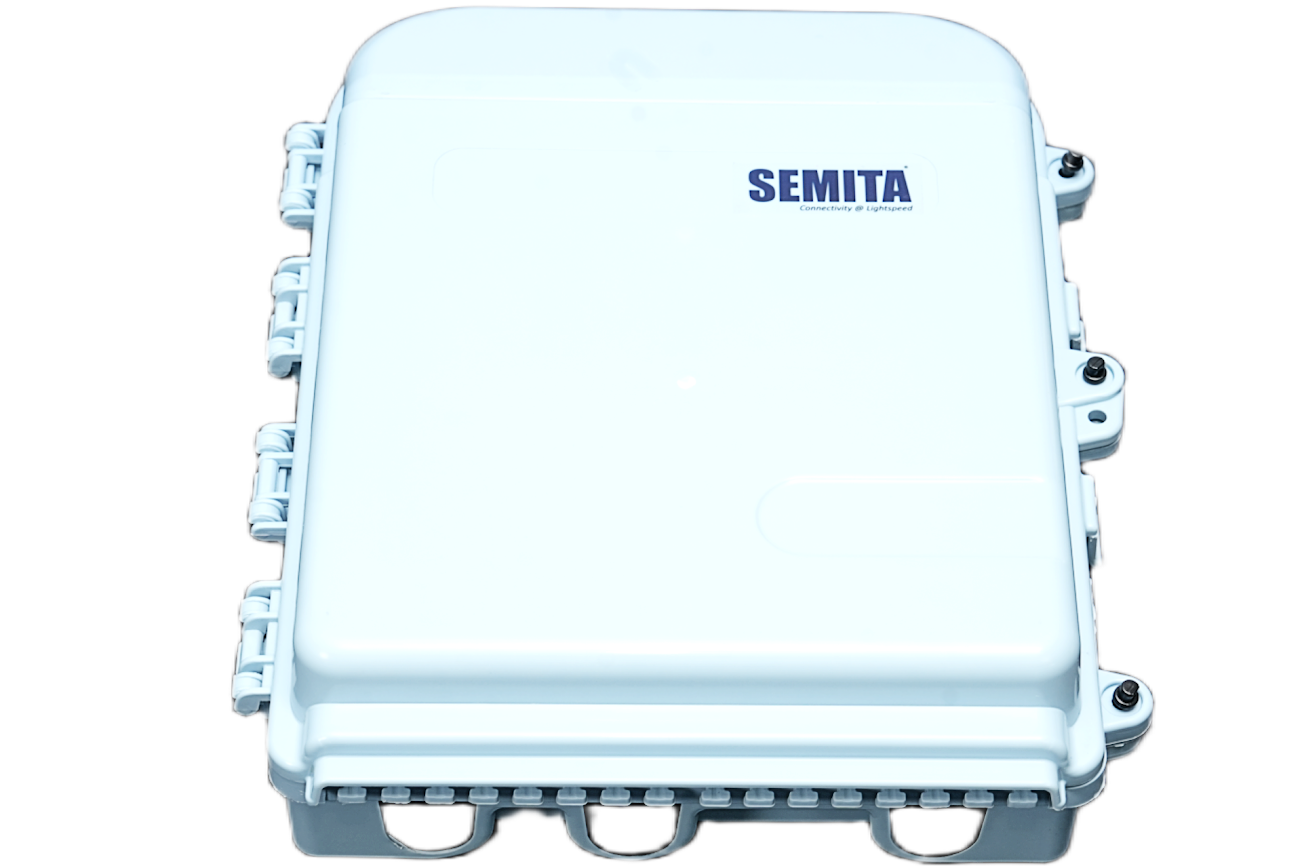

24F Fiber Distribution Box
Product Features
- Industry Standard User Interface, is made of high impact plastic.
- Light and handy with easy maintenance, has special key-operated switches.
- Anti-UV, Ultra violet resistant and rainfall resistant.

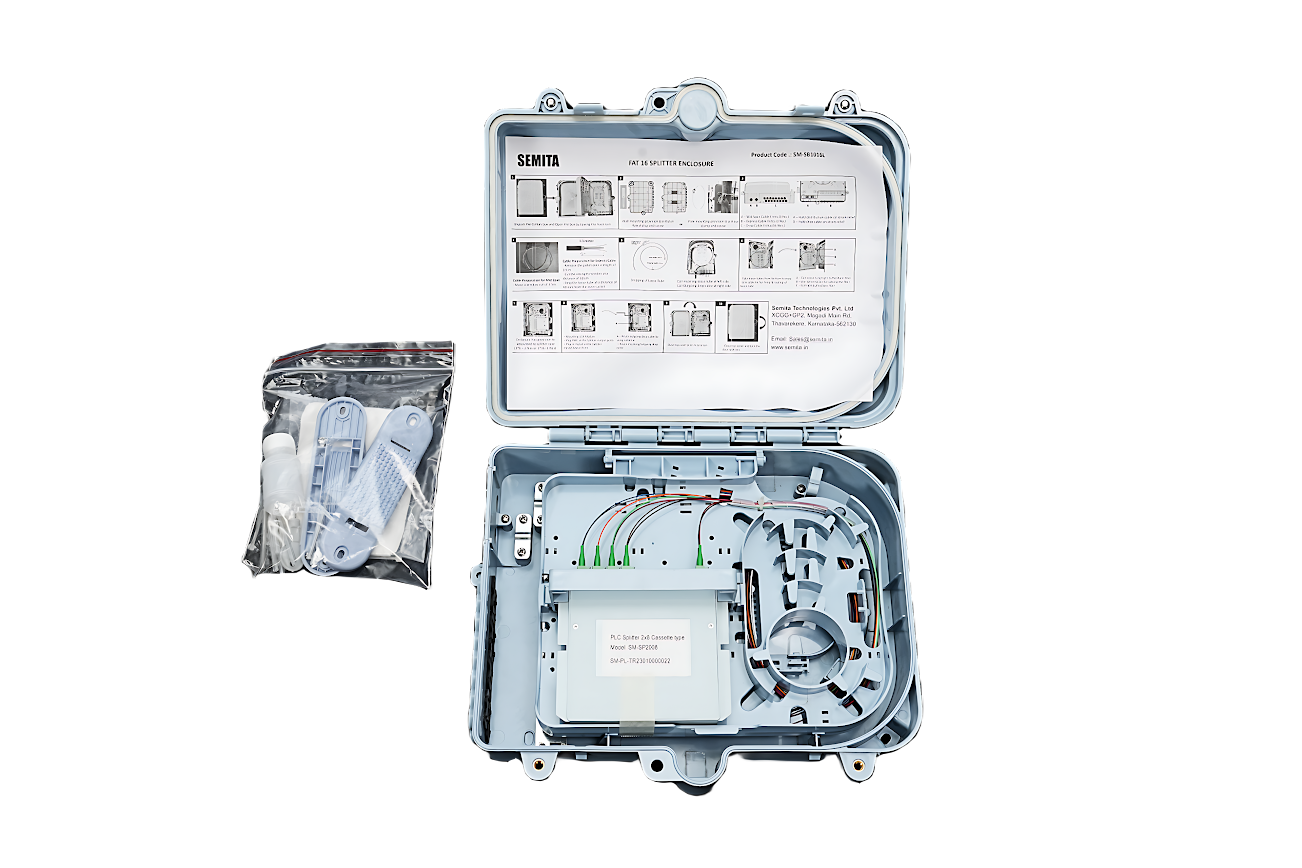

- Splicing tray has two sides – one side for splitter & out-cable arrangement; the other side for the incoming cable and splicing protection.
- Splicing:12~24cores
- 3 inlet ports, 16 outlet ports mid-span provision provided with a removable plate provision for cable entry.
- Can accommodate PLC splitter and box style splitter. Max splitting 1:16.
- Can be used in indoor and outdoor, Wall-mounting.
Technical Parameters
| Type | Measurements |
|---|---|
|
Max size（D×W×H) |
317.5 × 248 × 101mm |
|
Weight |
1.75 kg |
|
Radius of curvature |
≥40mm |
|
Splice tray excess loss |
≤0.01dB |
|
Max capacity(single fiber) |
24 cores |
|
Temperature range |
– 40℃ ~ + 80℃ |
|
Lateral compression resistance |
≥2000N / 10 cm |
|
Impact resistance |
≥2000N / 10 cm |
Accessories
- Pole Mount accessories x 1set Pigtails x 2 Cable ties x 8 Insulation Tape x 1 Wall mounting accessories Fiber protection tube x 0.5m Heat Shrink tube x 8
- Pigtails x 2
- Cable ties x 8
- Insulation Tape x 1
- Wall mounting accessories
- Fiber protection tube x 0.5m
- Heat Shrink tube x 8
