6F SM ADSS OPTICAL FIBRE CABLE
Product Features
- All-Dielectric Self-Supporting (ADSS) design — no metallic elements, ideal for aerial installations.
- 6-core (6F) Single Mode G.652D optical fibre, suitable for long-distance and high-bandwidth communication.
- Lightweight and self-supporting, eliminating the need for messenger wires.
- Resistant to electromagnetic interference (EMI) and lightning strikes.
- Robust UV-resistant outer jacket for outdoor durability.
- Excellent tensile strength and environmental resistance, suitable for harsh weather conditions.
- Long service life with minimal maintenance requirements.
| Parameter | Specification |
|---|---|
| FRP – CENTRAL STRENGTH MEMBER | DIAMETER : 2.1 mm ± 0.1 mm |
| SM OPTICAL FIBRES COLOUR (G 652D) Attenuation : < 0.36 dB/Km at 1310 nm < 0.23 dB/Km at 1550 nm |
BLUE, ORANGE |
| LOOSE TUBE 6 nos. 2 FIBRES IN EACH TUBE |
PBT OD : 2.0 mm ± 0.1 mm |
| TUBE COLOUR | BLUE ORANGE and GREEN |
| FILLER – 4 Nos. | PE BLACK |
| FILLING COMPOUND | LOOSE TUBE IS FILLED WITH THIXOTROPIC JELLY |
| FLOODING COMPOUND | CABLE CORE IS FLOODED WITH WATER BLOCKING JELLY |
| SINGLE LAYER POLYESTER TAPE | WRAPPED OVER THE CABLE CORE |
| GLASS ROVING /ARAMID yarns | PERPHERAL STRENGTH MEMBER |
| RIP CORD – 2 Nos.(optional) | PROVIDED BELOW THE SHEATH |
| HDPE[UV] BLACK SHEATH | MINIMUM THICKNESS 1.8 mm |
| DIAMETER OF THE CABLE | 10.5 mm ± 1.0 mm |
| OVERALL WEIGHT OF THE CABLE | 95 Kg/Km Nominal |

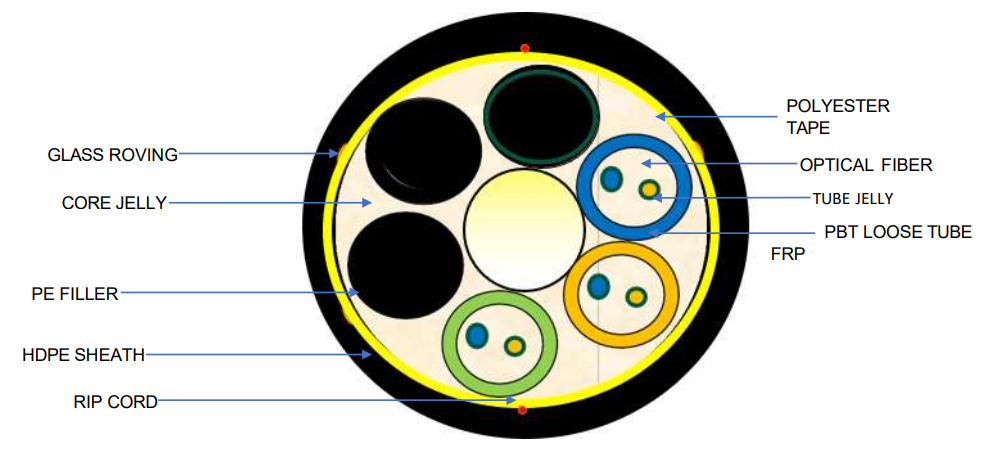

| COMPONENTS | DIMENSION / DESCRIPTION |
|---|---|
|
FRP – CENTRAL
STRENGTH MEMBER |
DIAMETER : 2.1 mm ± 0.1 mm |
|
SM OPTICAL FIBRES
COLOUR [G 652D]
Attenuation :
< 0.36 dB/Km at 1310 nm
&
< 0.23 dB/Km at 1550 nm |
BLUE, ORANGE
|
|
LOOSE TUBE 6 nos .
2 FIBRES IN EACH TUBE
|
PBT
OD : 2.0 mm ± 0.1 mm
|
|
TUBE COLOUR |
BLUE ORANGE and GREEN
|
|
FILLER – 4 Nos. |
PE BLACK
|
|
FILLING COMPOUND |
LOOSE TUBE IS FILLED WITH
THIXOTROPIC JELLY |
|
FLOODING COMPOUND |
CABLE CORE IS FLOODED WITH
WATER BLOCKING JELLY
|
|
SINGLE LAYER
POLYESTER TAPE |
WRAPPED OVER THE CABLE
CORE
|
|
GLASS ROVING /ARAMID
yarns
|
PERPHERAL STRENGTH
MEMBER
|
|
RIP CORD – 2
Nos.(optional) |
PROVIDED BELOW THE
SHEATH
|
|
HDPE[UV] BLACK
SHEATH
|
MINIMUM THICKNESS 1.8 mm |
|
DIAMETER OF THE CABLE |
10.5 mm ± 1.0 mm |
|
10.5 mm ± 1.0 mm |
95 Kg/Km Nominal |
OPTICAL FIBER CHARACTERISTICS (Single Mode G.652D)
| Parameter | Specification |
|---|---|
| Attenuation @1310 nm | ≤ 0.350 dB/Km |
| Attenuation @1550 nm | ≤ 0.230 dB/Km |
| Fiber cut-off wavelength | ≤ 1320 nm |
| Cable cut-off wavelength | ≤ 1260 nm |
| Mode Field Diameter @1310 nm | 9.2 ± 0.4 µm |
| Mode Field Diameter @1550 nm | 10.4 ± 0.5 µm |
| Dispersion | |
| 1285 - 1330 nm | ≤ 3.5 ps/nm.km |
| 1270 - 1340 nm | ≤ 5.3 ps/nm.km |
| 1550 nm | ≤ 18 ps/nm.km |
| 1625 nm | ≤ 22 ps/nm.km |
| Zero Dispersion wavelength | 1300 - 1324 nm |
| Zero Dispersion Slope | ≤ 0.092 ps/nm².km |
| PMD Co-efficient (1310nm & 1550nm) - Uncabled Fiber | ≤ 0.2 ps/sqrt.km |
| PMD Co-efficient (1310nm & 1550nm) - Cabled Fiber | ≤ 0.3 ps/sqrt.km |
| Other Parameters | |
| Coating/Cladding concentricity | ≤ 12 µm |
| Coating Diameter | 245 ± 10 µm |
| Diameter – Natural Cladding Non-Circularity | ≤ 1% |
| Cladding Diameter | 125 ± 1 µm |
| Cladding Diameter Error | ≤ 0.6 µm |
| Mode Field Concentricity Error | ≤ 4m radius curvature |
| Fiber Curl | — |
OPTICAL FIBRE CABLE PERFORMANCE
| MECHANICAL | ENVIRONMENTAL | ||
|---|---|---|---|
| Maximum Tensile Strength | 2000 N | Temp. Performance (Installation) | -20°C to +70°C |
| Min Bending Radius (Load) | 20 D | Temp. Performance (Service) | -20°C to +70°C |
| Crush Resistance | 2000 N / 100*100 mm | Temp. Performance (Storage) | -20°C to +70°C |
| Min Bending Radius (No Load) | 20 D | ||
| Impact Strength | 25 N, 0.5m | ||
| Kink Resistance | 10 D | ||
| Torsion | ±180º | ||
| Water Penetration | 2m head, 3m samples, 24 hrs | ||
| All tests | Shall be carried out as per IEC Standard | ||
| Cable Core Drip Test | 30cms, 70°C, 24 hr | ||
Change in attenuation shall be ≤ 0.05 dB/Km.
